Debris

Very little publicity was made about multiple pieces of debris from KAL-007 discovered washed ashore in southern Hokkaido and northern Honshu.

Some of the first debris was found at 5am on 13th Sept near Sai, northern Honsu.

Translation of 18th Sept article 1 (there are 3 articles on KAL007 on this page) Aluminium-alloy fragments believed to be from the Korean airliner shot down off Sakhalin have washed up on the coast of Sai village, Shimokita district. The finder, fisherman Tatewaki Toshio, 59, of Yagoshi in Sai, found them at about 5 a.m. on the 13th while gathering kelp on the Naka-Isoya shore, near Gankake-iwa, about 3 km from his home. The two thin aluminium-alloy sheets, 23 × 30 cm, had a honeycomb-like material packed between them. He thought they might be from the Korean airliner, but because Sai is some 650 km from Sakhalin he was only half convinced and did nothing about them. On the 17th, however, he saw fragments on television that looked exactly the same, and reported them to the Ōma police. The police told the village, which passed it on to the fisheries emergency headquarters. Thinking more pieces might have washed up, the village plans to search the whole coastline once the mayor is back from fishing on the 18th.”

The Sept 19th paper reports that around Sai on the 18th were found additional: 4 pieces of honeycomb, 1 plastic kerosene container with Korean lettering, A wooden box with Korean writing, sandals and three detergent bottles were found within 20–30 m of each other Oma: 1 aluminium-alloy sheet about the size of a phone book,

Ultimately over 30 pieces of honey comb material and a few items with Korean writing were subsequently found over the following days.

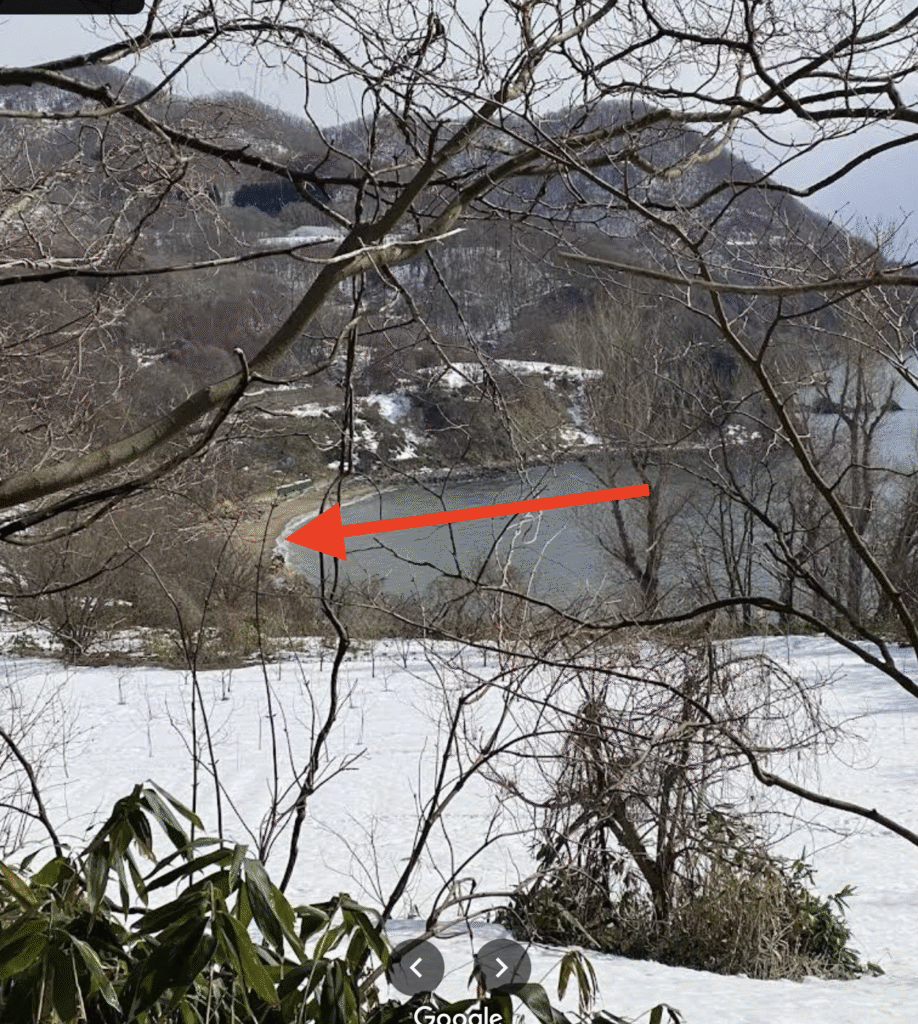

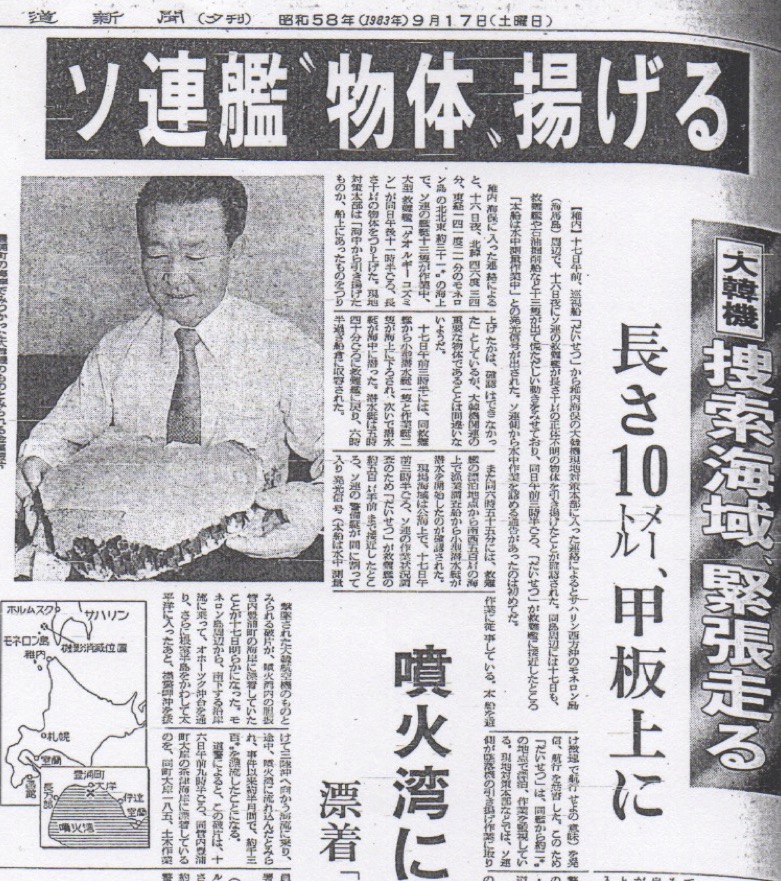

Another piece was found on Chas Beach near Toyoura in Hokkaido on Sept 16th at 9:10am by a civil engineer. He took the find to the Hokkaido prefecture police. This in turn was reported in the Hokkaido Shimbun on Sept 17th, 1983.

No western media outlets chose to publish these finds.

These finds are important as the debris could not have come from Moneron Island near Sakhalin due to the nature of currents in the area. This fact was not lost on the Japanese and the papers are full of the strong northerly flowing currents. For a crash site near Sakhalin the debris should travel north, or possibly slowly towards northern Hokkaido. It was not possible for this debris to have originated at the crash site near Moneron Island, near Sakhalin but much further south.

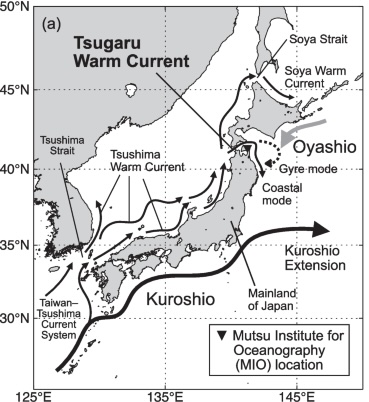

The two currents that dominate in Japan are the Tsushima current which always flows north at around 1-2 knots. This splits to form the Tsugaru current which travels between Hokkaido and Honshu at an incredible 7-8 knots from west to east.

In addition to this strong current flow a large low pressure system (Typhoon Ellen) caused strong SW winds (i.e. blowing towards the NE in line with the currents) and 2-4m swells on Sept 4-5. After the low pressure system passed the winds turned NE and it was this wind that caused some of the debris flowing in the Tushima current onto the northern beaches of Hokkaido.

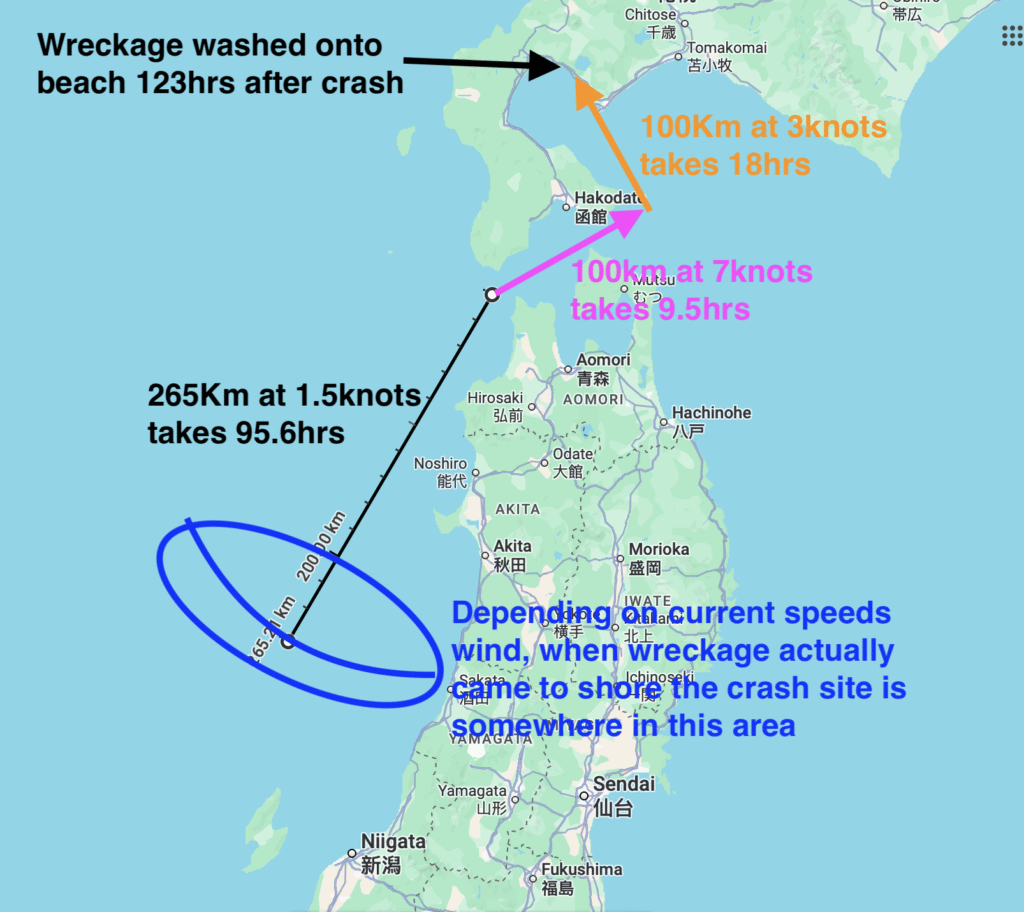

An extremely rough back of the envelope calculation ignoring wind shows this piece of debris must have come from a location just north of Sado Island.

Debris also washed ashore around Sai on the main Island of Honshu and first discovered on Sept 14th which also could not have arrived from Sakhalin.

Update: Sept 28, 2025 A much more detailed debris drift analysis using historical currents, wind and wave data has been done here https://kal007search.com/debris-drift/

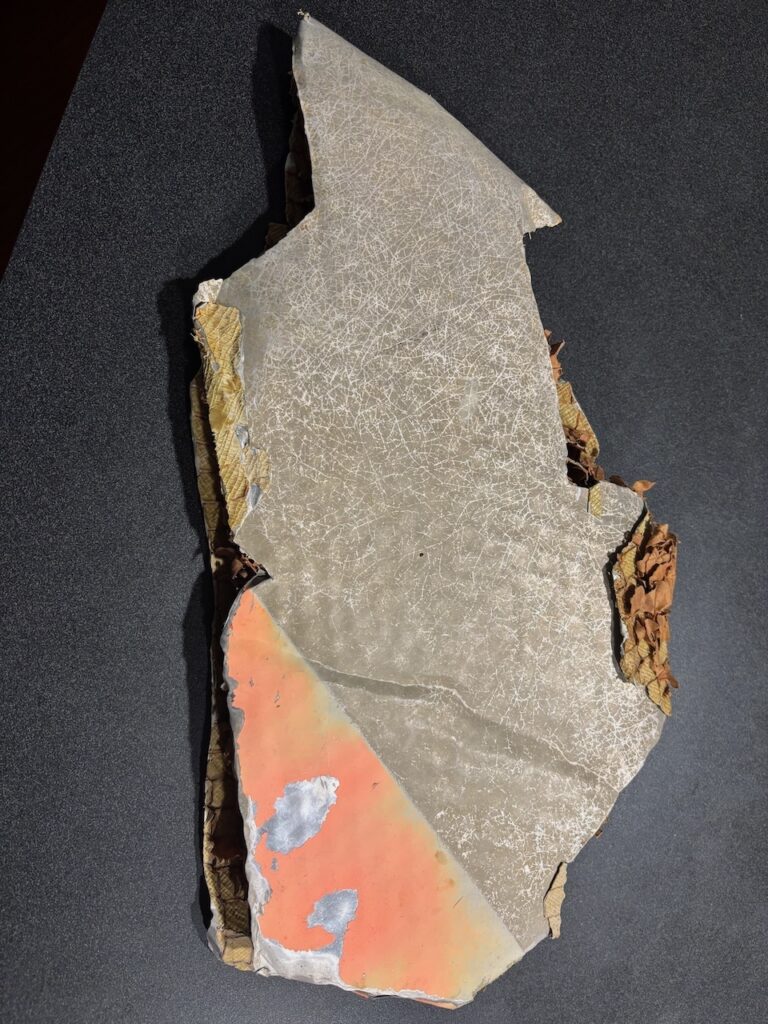

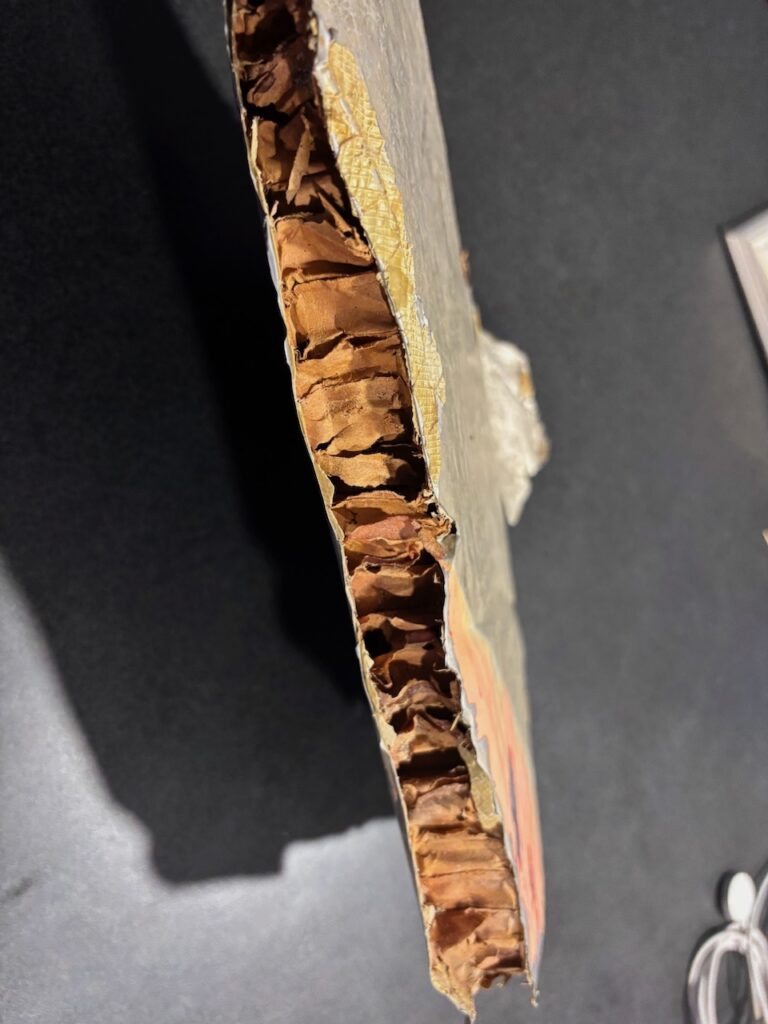

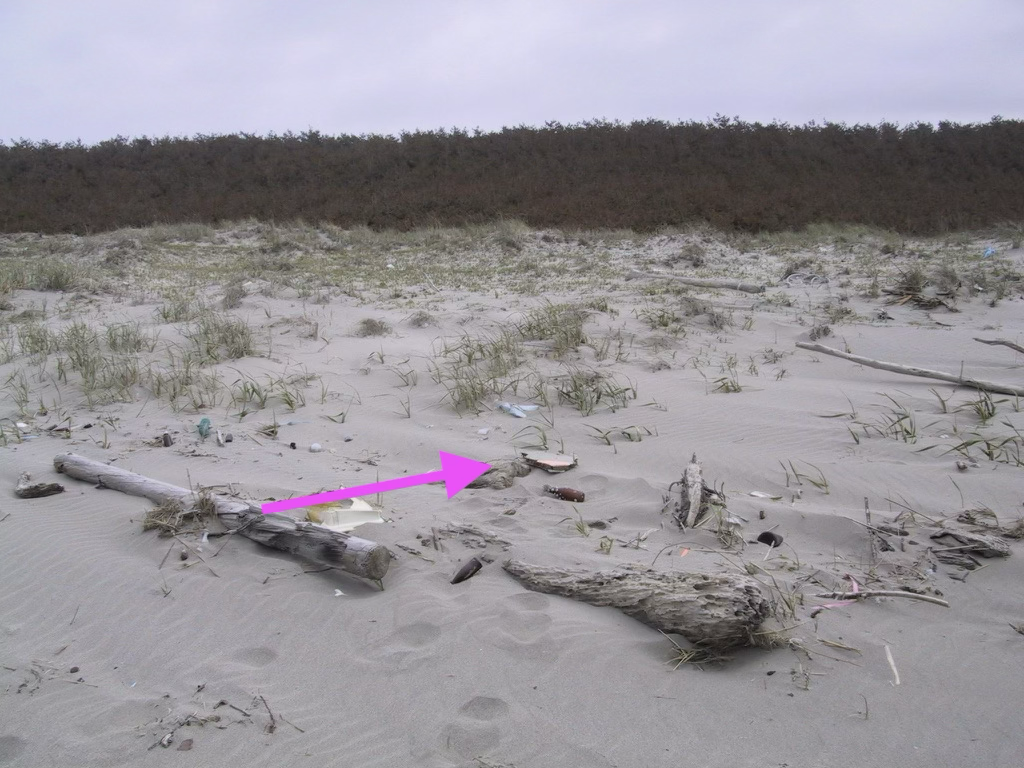

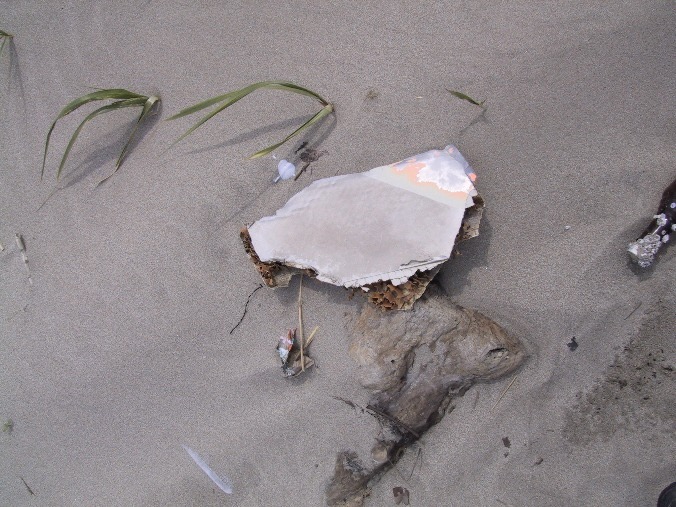

Michel Brun found debris much later in 1989 and 1991 on many beaches as far south as Murakami. Inspired by Brun I collected the same honeycomb debris in 2001 approximately in the area of Shimohama (south of Akita). Click to expand.

For an interactive heat map of debris found please visit https://jim-flex.github.io/KAL007/heatmap11.html

For specific locations and more photos please refer to following table.

Date foundLattitudeLongitude#piecesComment/link
6/9/198342.575028140.72071Chas Beach
9/9/198346.348751141.316404Moneron
9/9/198343.925879144.561012N. Hokkaido
9/9/198344.101234144.217672N. Hokkaido
9/9/198344.234799143.608892N. Hokkaido
9/9/198344.421378143.235552N. Hokkaido
9/9/198344.696778142.823202N. Hokkaido
9/9/198344.885053142.628652N. Hokkaido
10/9/198346.091363141.167262Moneron
10/9/198345.356208142.137453Tail fin Japan
10/9/198346.665628141.857001Tail fin Russia
11/9/198345.365623142.118163Papercup
11/9/198344.485741143.124083Handbag
13/9/198341.410260140.836471Sai
17/9/198341.339251140.8168414Sai
17/9/198341.453725140.879109Sai
20/9/198341.355907140.823066Sai
16/11/198941.311683140.804732Brun P57
21/11/198942.066025139.438661Brun P59
22/11/198942.100582139.4255110Brun P60
23/11/198942.071533139.466934 Brun P61
27/11/198942.366582140.291412Brun P105
5/8/199039.598709140.059987Brun P96
6/8/199039.203687139.892913Brun P99
7/8/199039.231498139.906269Brun P99
8/8/199039.195333139.905511Brun P99
9/8/199039.040002139.863352Brun P100
10/8/199038.540207139.548153Brun P101
11/8/199038.231971139.447891Brun P101
9/9/200139.477893140.040271Shown above
9/10/200139.454752140.034311Thompson
9/11/200139.447933140.032791Thompson
4/7/202538.822992139.773831Thompson
7/7/202539.572150140.057091Thompson
